GLOVEBOX SPECIFICATIONS 手套箱基本規格(可客製化)

» MODEL AND SIZE Standard Glovebox


    SPECIFICATIONS

    Glovebox

    • CLOSED LOOP GAS CIRCULATION
    • AUTOMATIC PURGING
    • AUTOMATIC REGENERATION

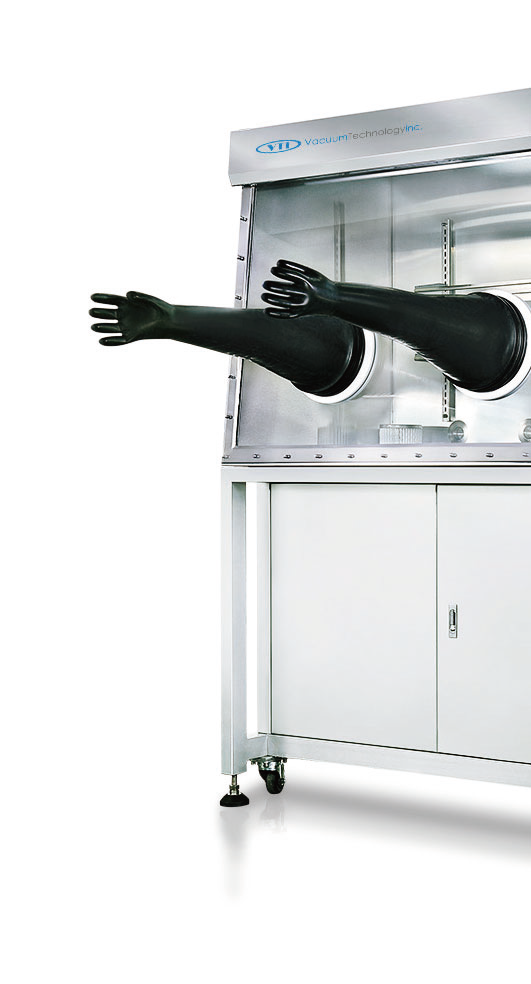

    Main Chamber

    Material:Stainless Steel Type 304, Thickness 3mm (1/8")

    External Surface:White Paint (Brushed Stainless Steel Available)

    Internal Surface:Brushed Stainless Steel

    Inside Dimension:

    Modular length: 1220mm/1500mm/1800mm/2440mm 48.0"/59.1"/70.9"/96.0"

    Modular Depth: 750mm/1000mm/1200mm 29.5"/39.4"/47.2"

    Modular Height: 900mm 35.4"

    Sight Windows: Inclined, Safety Glass, Thickness 8mm (1/3")(Polycarbonate available)

    Gloves Ports: POM (Polyoxymethylene), double O-ring seal, 220mm (8.7") Diamete

    Gloves: Butyl, 8" cuff dia., 0.015"thick, 32" long (many other materials and sizes available specific to your needs)

    Dust Filter: HEPA 0.3μm, one on gas inlet, one on gas outlet

    Shelving: Stainless Steel material, two fixed shelves (adjustable shelves available)

    Box Light: LED, front and top mounted

    Feedthroughs: KF40, One Power cord feedthrough, backup ports for various feedthroughs (BNC, USB, Post Connector, VGA, Liquid / Gas feedthroughs and custom feedthroughs available on request)

    SPECIFICATIONS 2

    • PRESSURE CONTROL IN THE GLOVEBOX
    • AUTOMATIC VACUUM PUMP CONTROL
    • ECO MODE

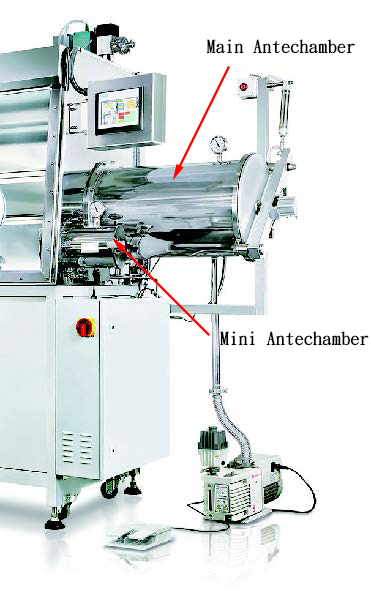

    Main Antechamber

    Size: Diameter: 360mm (14.2") or 400mm (15.7"), Length 600mm (23.6")
    (other sizes available)

    Materials: 304 Stainless Steel

    External Surface: White Paint (Polished Stainless Steel available)

    Internal Surface: Brushed Stainless Steel

    Sliding Tray: 304 Stainless Steel

    Double Door: Anodized Aluminum, 10mm thick (2/5"); Vertical operation
    with lifting mechanism (Interlocking door available)

    Manometer: Analog Display

    Operation: Touch Screen
    Automatic operation via solenoid valves

    Mini Antechamber

    Size: Diameter: 150mm (5.9") or 100mm (3.9"), Length 300mm (11.8")

    Materials: 304 Stainless Steel

    External Surface: White Paint (Polished Stainless Steel available)

    Internal Surface: Brushed Stainless Steel

    Double Door: Hinged (Interlocked double door available)

    Manometer: Analog Display

    Operation: Manual operation via hand valve

    SPECIFICATIONS 3

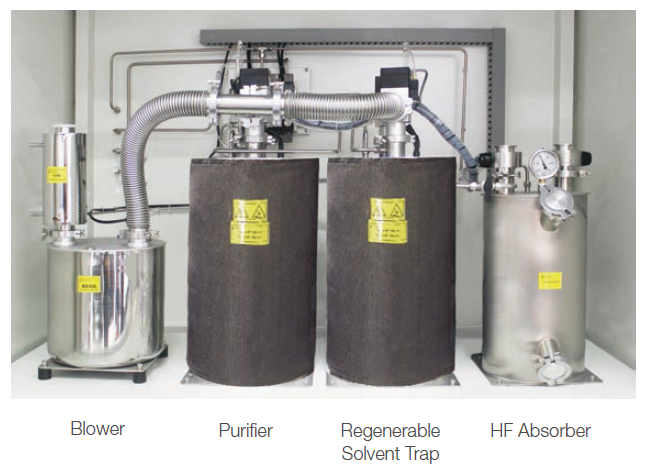

    Gas Purification Unit

    Purifier

    Function: Airtight Seal, Removal of H2O and O2

    Container Material: 304 Stainless Steel

    Absorber Material: 5kg Copper Catalyst ,5kg Molecular Sieve

    Attainable Purity: Less than 1 ppm moisture and oxygen

    Gas Circulation

    Working Gas: Nitrogen, Argon or Helium

    Encapsulated Blower: 90m3/h (145m3/h or 180m3/h available)

    Regeneration

    Operation: PLC automatically controlled

    Regeneration Gas: Working gas mixed with Hydrogen (5-10%)

    SPECIFICATIONS 4

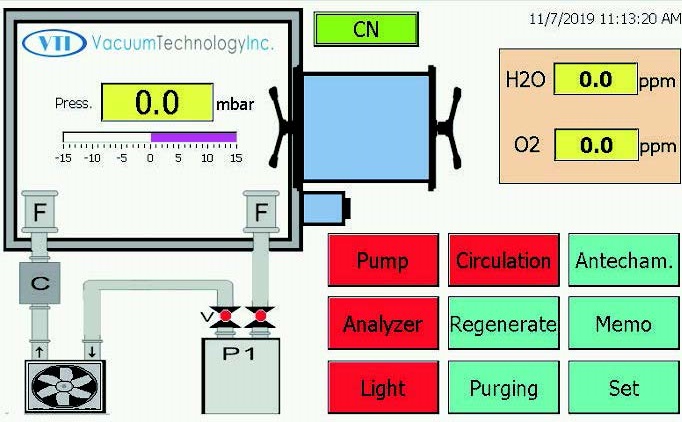

    System Control

    PLC and HMI: Siemens S7

    Touch Screen: Siemens 7", color


    Features: Automatic control of Purging, Circulation Control,
    Regeneration, Pressure, as well as Self-Diagnosis,
    Power Failure Re-Start and Password Protection.


    Box Pressure set: Between +/-12mbar, automatic protection when
    system is over +/-15mbar.

    Vacuum Pump
    12 m3/h or 17 m3/h
    Rotary vane pump with oil mist and gas ballast control unit
    (Dry pump is available)

    Valves

    Main Valves: Electro-pneumatic angle valves KF 40

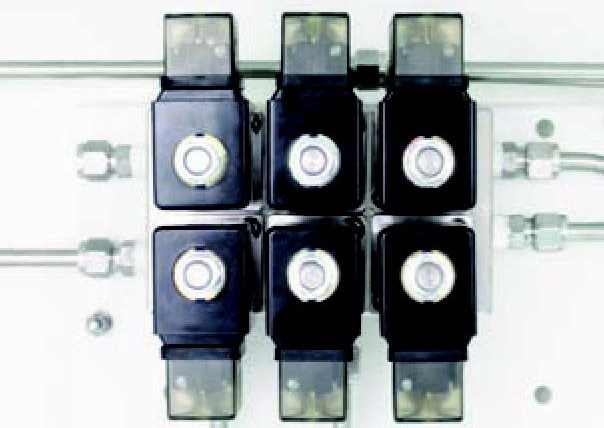

    Control Valves: Integrated Solenoid Valves
