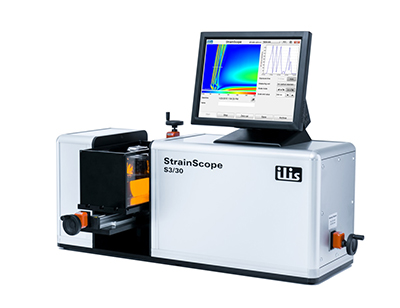

Strain Scope S3 Series

自動分析計算透明材料應力光彈儀

特性:

‧客觀和可靠的結果
‧快速簡便的操作
‧現場測量品質改進
‧可追溯性的自動生產線檔案所有結果
‧降低成本的優化生產過程



Characteristic:

‧Objective and reliable results
‧Fast and easy operation
‧Improvement in quality by on-site measurement
‧Traceability by automatic archival of all results
‧Cost reduction by optimizing the production process






  • S3/30 Series

    main application hollow glas (tableware, bottles, food jars, tubular glass, etc.)
    positioning table biaxial (horizontal and vertical),
    approx. ±50 mm travel range
    working distance focus manually adjustable, ±50 mm
    illumination LED
    image acquisition matrix camera with fixed focal lens
    image resolution 600 x 450 px
    image size approx. 24 x 18 mm
    spatial resolution approx. 40 µm/px
    measuring results polarization angle (°)
    optical retardation (nm)
    normalized retardation(nm/cm, nm/in)
    integrated stress (MPa, psi)
    measuring range approx. -280 to +280 nm
    interfaces USB 2.0, foot switch (1/4" jack)
    power supply 100-240 V AC, 45-65 Hz, 100 VA
    dimensions approx. 430 x 990 x 660 mm (H/B/T), w/o PC
