Strain Scope S4 Series

自動分析計算透明材料應力光彈儀

特性:

‧客觀和可靠的結果
‧快速簡便的操作
‧現場測量品質改進
‧可追溯性的自動生產線檔案所有結果
‧降低成本的優化生產過程



Characteristic:

‧Objective and reliable results
‧Fast and easy operation
‧Improvement in quality by on-site measurement
‧Traceability by automatic archival of all results
‧Cost reduction by optimizing the production process

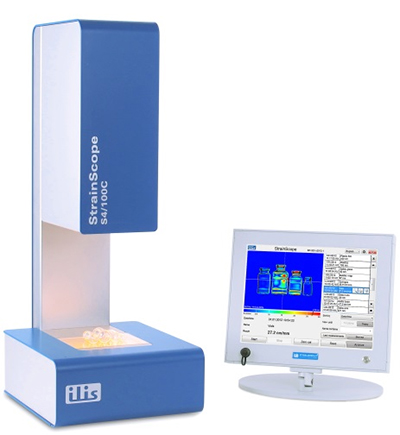

  • StrainScope® S4/100, S4/100C

    Operation external PC with touch operatlon
    Illumination LED array,linearly or circularly (C) polarized
    Image acquisitlon matrix camera with telecentnc lens ( 100 mm aperture)
    Working distance approx. 260 mm
    Field of View approx. 80 × 60 mm
    Image resolution 600 x 450 px
    Spatial resolution approx. 0.13 mm/px
    Measuring results polarization angle ( 。 )
      optical retardation (nm)
      optical retardation (nm)
      normalized retardation (nm/cm, nm/mm)
      integrated stress (MPa)
    Measuring range approx. - 280 to + 280 nm
      approx. 0 to 100 nm (C)
    Measunng frequency up to 20 Hz (depending on computer performance)
    Interfaces USB 2.0, foot switch ( 1 / 4 " jack)
    Power supply 100 - 240VAC , 45 - 65 Hz, 100VA
    Dimensions (H/W/D) approx. 890 × 350 × 420 mm (without PC)
    Weight approx. 25 kg (without PC)
